Tailscale subnet 中的设备单独加入 tailnet 之后,该设备无法通过原局域网 IP 访问

  •
  •   lnbiuc · 25 天前 · 666 次点击

    配置

    A 设备 IP 为 10.115.15.1 ,安装 tailscale ,启用--advice-router=10.115.15.0/24

    B 设备 IP 为 10.115.15.25 ,安装 tailscale ,不启用--accept-router

    C 设备不在局域网 10.115.15.0/24 中,安装 tailscale ,启用--accept-router

    存在的问题:

    • 10.115.15.0/24 中的设备,可以通过 10.115.15.25 访问到 B 设备
    • C 设备,无法通过 10.115.15.25 访问,只能通过 100.0.0.0/8 访问

    如果 B 设备 IP 为 10.115.15.25 启用了--accept-router ,10.115.15.0/24 中的设备不能通过 10.115.15.25 访问

    需求

    不在 10.115.15.0/24 的设备,启用了--accept-router 的设备,可以通过 10.115.15.25 访问该设备

    HELP ! HELP ! HELP ! 请求大佬帮助

    补充信息

    自建了 Derper 并屏蔽了官方 Derper ,使用官方面板

    启用了 ACL ,但是我测试过,关闭 ACL 仍然与上述现象描述一致

    • A 、B 设备 ACL tag 为 home-server
    • C 设备 ACL tag 为 work-pc
    // Example/default ACLs for unrestricted connections.
    {
    	// Declare static groups of users. Use autogroups for all users or users with a specific role.
    	// "groups": {
    	//  	"group:example": ["[email protected]", "[email protected]"],
    	// },

    	// Define the tags which can be applied to devices and by which users.
    	"tagOwners": {
    		"tag:home-pc":     ["autogroup:admin"],
    		"tag:home-server": ["autogroup:admin"],
    		"tag:work-pc":     ["autogroup:admin"],
    		"tag:game-server": ["autogroup:admin"],
    		"tag:game-player": ["autogroup:admin"],
    		"tag:relay-node":  ["autogroup:admin"],
    		"tag:out-user":    ["autogroup:admin"],
    	},

    	// Define access control lists for users, groups, autogroups, tags,
    	// Tailscale IP addresses, and subnet ranges.
    	"acls": [
    		// Allow all connections.
    		// Comment this section out if you want to define specific restrictions.
    		// {"action": "accept", "src": ["*"], "dst": ["*:*"]},
    		// 允许 out-user 之间全互联
    		{
    			"action": "accept",
    			"src":    ["tag:out-user"],
    			"dst":    ["tag:out-user:*"],
    		},
    		// 允许 out-user 和 game-server 互相访问
    		{
    			"action": "accept",
    			"src":    ["tag:out-user"],
    			"dst":    ["tag:game-server:*"],
    		},
    		{
    			"action": "accept",
    			"src":    ["tag:game-server"],
    			"dst":    ["tag:out-user:*"],
    		},
    		// 允许 home-pc 和 out-user 互相访问
    		{
    			"action": "accept",
    			"src":    ["tag:home-pc"],
    			"dst":    ["tag:out-user:*"],
    		},
    		{
    			"action": "accept",
    			"src":    ["tag:out-user"],
    			"dst":    ["tag:home-pc:*"],
    		},
    		// 允许其他 tag 之间全互联
    		{
    			"action": "accept",
    			"src": [
    				"tag:home-pc",
    				"tag:home-server",
    				"tag:work-pc",
    				"tag:game-server",
    				"tag:game-player",
    				"tag:relay-node",
    			],
    			"dst": ["*:*"],
    		},
    	],


    	// Define users and devices that can use Tailscale SSH.
    	"ssh": [
    		// Allow all users to SSH into their own devices in check mode.
    		// Comment this section out if you want to define specific restrictions.
    		{
    			"action": "check",
    			"src":    ["autogroup:member"],
    			"dst":    ["autogroup:self"],
    			"users":  ["autogroup:nonroot", "root"],
    		},
    	],

    	"derpMap": {
    		// OmitDefaultRegions 用来忽略官方的中继节点
    		"OmitDefaultRegions": true,
    		"Regions": {
    			"905": {
    				"RegionID":   905,
    				"RegionCode": "cd",
    				"RegionName": "",
    				"Nodes": [
    					{
    						"Name":     "905",
    						"RegionID": 905,
    						"HostName": "",
    						"DERPPort": ,
    						"STUNPort": ,
    					},
    				],
    			},
    		},
    	},
    }


    2 条回复    2025-05-12 10:24:02 +08:00
    lnbiuc
        1
    lnbiuc
    OP
       25 天前

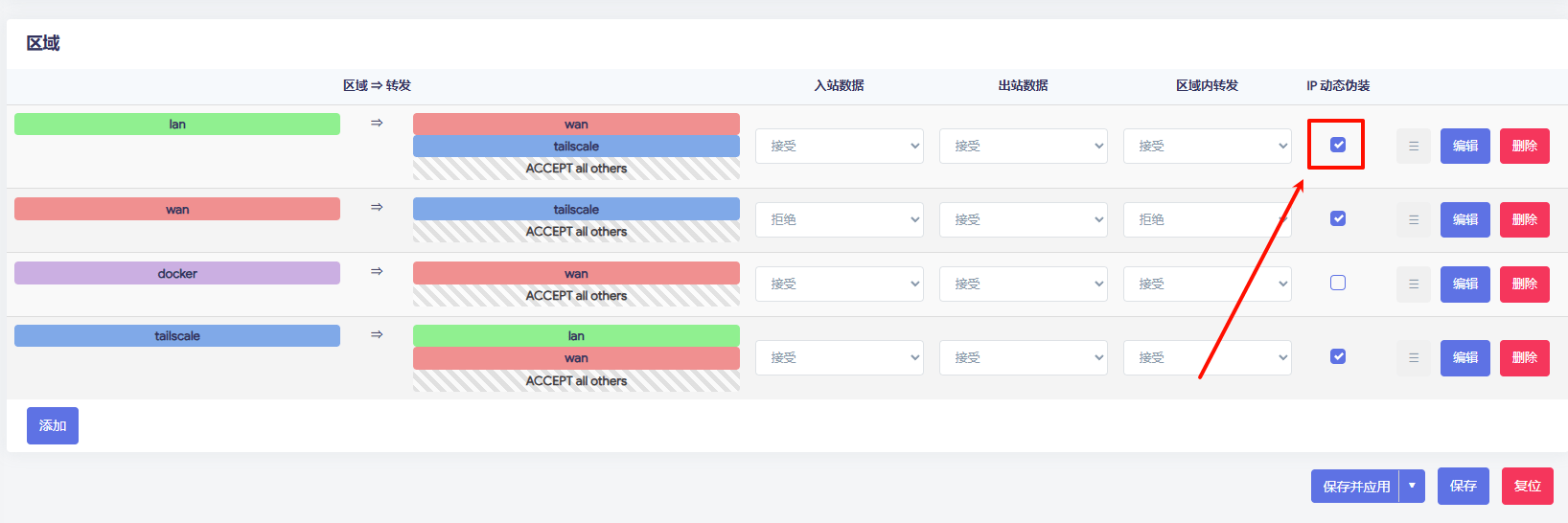

    自己回下自己,OpenWRT 防火墙开启 Lan => Tailscale 的 IP 动态伪装即可解决问题
    问题解决了,但是没明白原理,还是希望有大佬解答下
    ![image.png]( https://cdn.violet.vin/v2/DIJkbfr.png)
